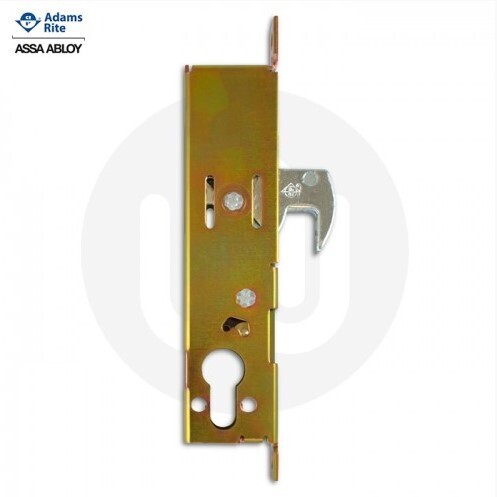

Adams Rite MS2200 Euro Hookbolt Case

The Adams Rite MS 2200 hook bolt provides maximum security locking for both swing and sliding aluminium doors using a europrofile cylinder.

Hookbolt operated by euro profile cylinder with key on outside and key or turn on the inside.

Specification:

- Alumina ceramic core in bolt to prevent hacksaw attack

- Retains the same uncomplicated pivot mechanism and all the security features associated with the other MS Deadlocks

Technical Details:

Faceplate Size: 25mm x 195mm

Case Height: 159mm

Case Width: 18mm

Case Depth: 42mm / 43mm / 53mm (depending on backset)

Hookbolt Projection: 20mm

Screw Centres: 180mm
