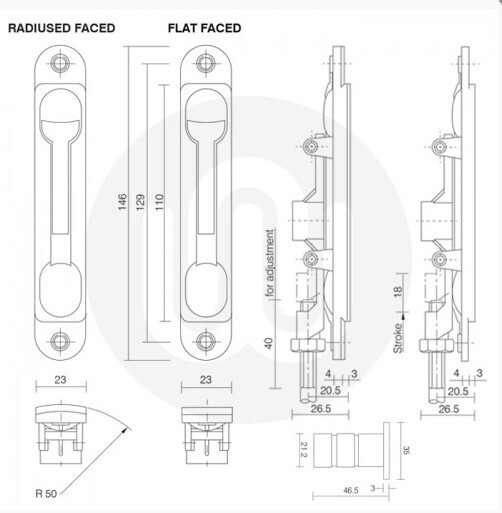

Axim Style Flush / Shoot Bolts

The Flush bolts are rebated into a door, and are operated by a small lever. For maximum security flush bolts secure the slave leaf of a pair of doors.

A standard installation requires two flushbolts morticed into the top and bottom of the door.

For maximum security the Axim flush bolt has a hardened steel bolt, zinc plated with an anti-rattle sleeve.

Suitable for Aluminium Doors.

Sold in singles.

- Primarily intended for mounting in the leading edge or inside face of the slave leaf of a pair of doors

- Key features include smooth lever action

- Available in one fully threaded length, 305mm, which can be cut to suit

- Shoot bolt: 18 mm diameter and a die cast zinc alloy body mechanism

- Floor socket keep is sprung loaded and dust resistant with a satin chrome finish
