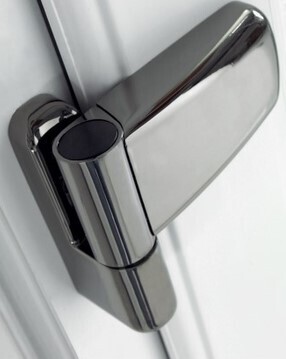

Mila iDeal Flag Hinge
•3 dimensional adjustment - vertical (+4mm), lateral (+/- 5mm) and fine tuning for compression (+/- 1mm)
•Adjustment with 5mm Allen key achieved without removing door leaf from frame
•Steel hinge pin for enhanced strength
•Captive sash retaining screw for simple sash lid fitting
•‘Lift-on, lift-off’ design for efficient on-site installation by one person
•Positive location of the top cover cap and height adjustment packer further eases fabrication
•4 over-rebate bushes to fit over-rebate heights 14 - 24mm - bushes are marked 14-20mm, 15-19mm,16-18mm and 17mm
•Utilizes only 1 frame packer to alter over-rebate heights by a further 4mm, suiting a range of profile systems
•‘Friction fit’ packer for ease of fabrication
•Tested to exceed BS6375-2 requirements
•Tested to 50,000 cycles underload
•Exceeds 96 hours salt spray corrosion resistance requirements - plated finishes 240 hours, powder coated finishes 480 hours
•Maximum sash weight 80kg with (2 hinges)
